HookHubNet – Secure TCP Tunneling via WebSockets

About

HookHubNet is a tunneling system that enables secure forwarding of TCP traffic through WebSocket connections. It consists of a central hub that manages connections from multiple hooks, each forwarding traffic to backend services. The system allows exposing local services securely without direct network exposure, ideal for development, testing, and secure remote access scenarios.

Features

WebSocket-based tunneling for TCP traffic
Dynamic port assignment for hooks
Concurrent tunnel management
REST API for hook management
Configurable backend targets
Simple configuration via appsettings.json
Cross-platform (.NET 10, Linux/Windows/Mac)
Lightweight, no external dependencies

Tech Stack

Language

C#

Frameworks

.NET 10, ASP.NET Core

Libraries

System.Net.WebSockets, System.Net.Sockets

Other

No external services required

Usage

Getting Started

Clone: git clone https://github.com/mrodriguex/hookhubnet.git
Build: dotnet build HookHubNet.sln
Run Hub: dotnet run --project HookHubNet.Hub
Run Hook: dotnet run --project HookHubNet.Hook

Configuration

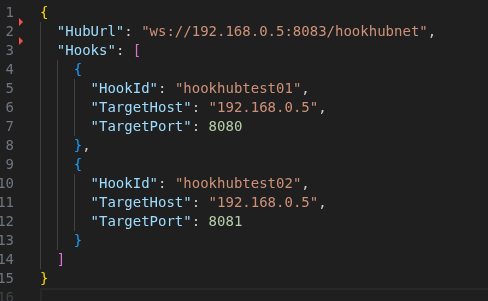

Configure appsettings.json in each project.
Set HubUrl and Hooks array in HookHubNet.Hook for hook IDs, target hosts, and ports.
Environment variables can override settings.

API Examples

Get all hooks: curl http://localhost:5000/hook/getall
Get hook info: curl http://localhost:5000/hook/get/webhook
Remove hook: curl http://localhost:5000/hook/remove/webhook

WebSocket Usage

Hooks connect via WebSocket: ws://localhost:5000/hookhubnet?id=webhook
TCP traffic to the assigned port is forwarded to the hook's backend.

Manual Testing

Start the hub and verify WebSocket acceptance.
Connect a hook and check port assignment.
Send TCP traffic to the assigned port and verify forwarding to the backend (e.g., with telnet or nc).

Visual Demo

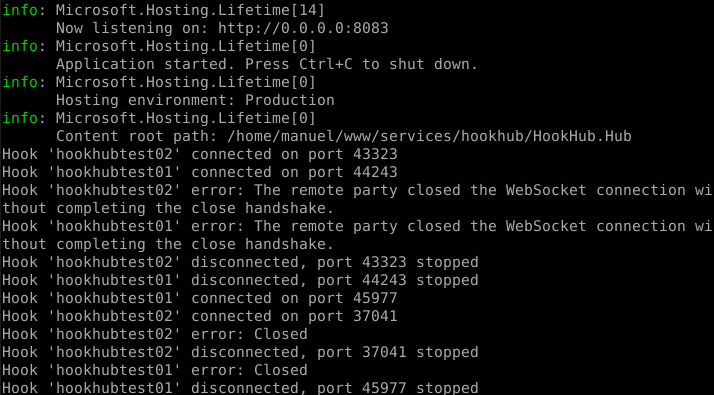

**Dashboard:** Centralized view of active tunnels, hooks, and traffic statistics.

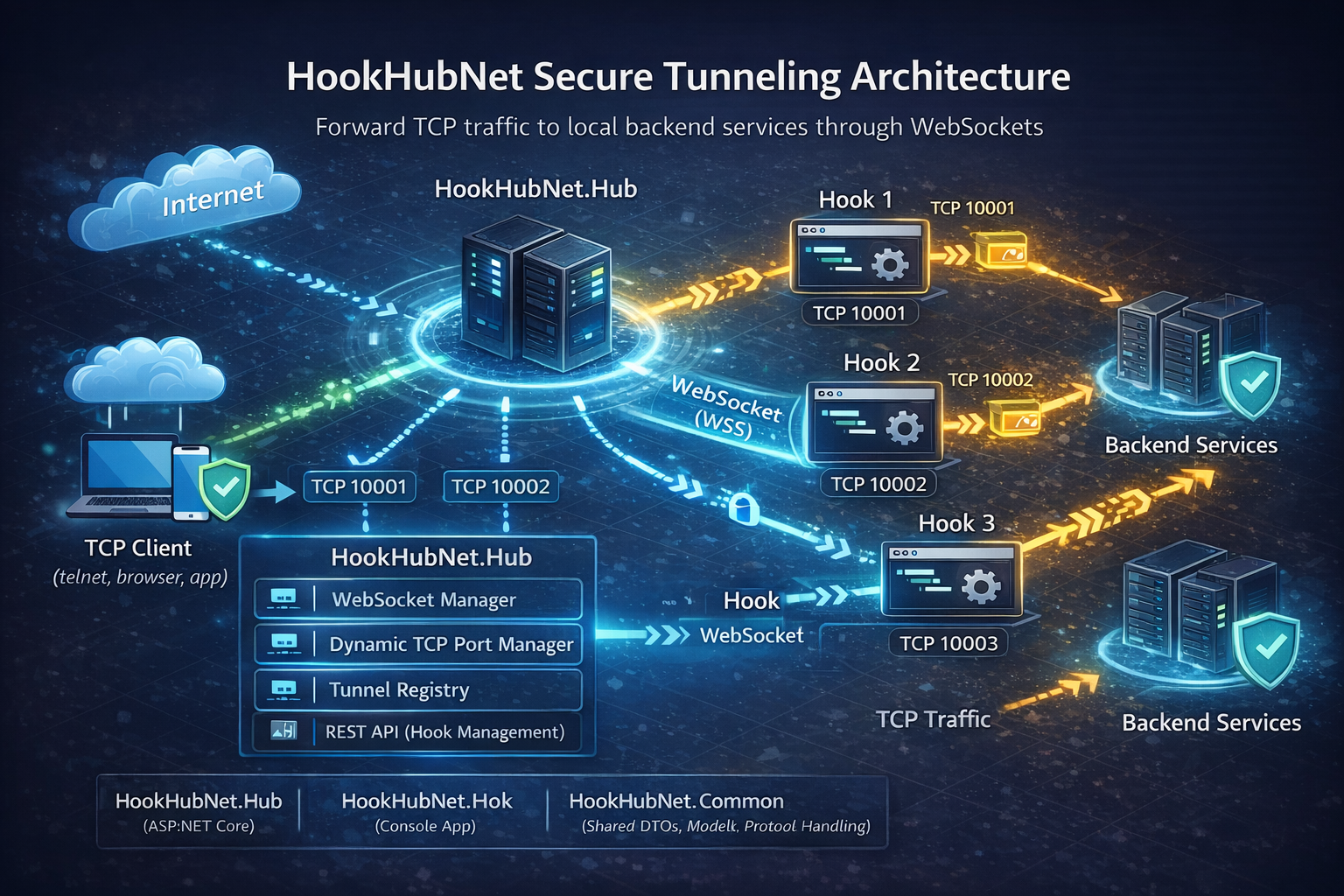

**Architecture:** Hub-and-spoke model with secure WebSocket tunnels between hub and hooks.

**Tunnel:** Example of TCP traffic being securely forwarded through a WebSocket tunnel.

**Logs:** Real-time logging of tunnel events, connections, and errors for monitoring and troubleshooting.

API Overview

Key endpoints:

Get all hooks: GET /hook/getall
Get hook info: GET /hook/get/<hookid>
Remove hook: GET /hook/remove/<hookid>

See README for request/response examples.

Contact

Maintainer: Manuel Rodríguez Camacho

GitHub | LinkedIn
